Hitesh Malviya Industries

Sheet & Wire

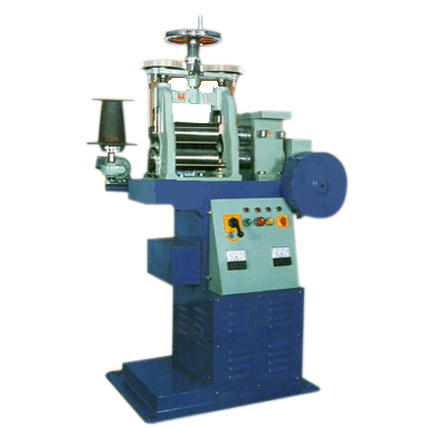

Rolling machine for Wire & Sheet especially suitable for small industries. The rolling machine have direct motor wheel & worm gear systems which requires minimum space. Manufactured from quality materials to produce robust components and durability. Powerful enough for continuous operation, The high quality of materials and workmanship and high level of after a first class product.

Model	Roller Size	Rolling Thickness		Roller R.P.M.	Power H.P.	Required Space LXDXH	Weight Kg.
Model	Roller Size	Wire	Sheet	Roller R.P.M.	Power H.P.	Required Space LXDXH	Weight Kg.
WSS 200 (8 INCH)	200 x 103 mm	14 mm	25 mm	31 S.S 47 D.S	5/440v	40X25X63 Inch	470
SSWC 200 (8 INCH)	200x127	14 mm	35 mm	40	7.5/440v	-	1250

The Lubrication of Model no. WSS 200, SSWC 200 is completely automatic.It also comes up with auto wire winding system which winds the final wire directly to the Spool. All bush bearing are constantly lubricated thus ensuring a long life even under maximum load condition. All rolling machines is equipped with highly quality oriented motors & other parts of the which machine long life and zero maintenance. These machines are specially designed to cater for higher & large production units.

1 Year against manufacturing defects. If any parts of machine proves defective within guarantee period, the same will be replaced free of charge, provided it is sent to our works on site, cartage paid. Any defects caused by an accident or misused is not covered by guarantee. For any further enquiries or modification in the machine as per your requirement be free to contact us for our impartial advice.

Roller are made from special H.C.H.C. alloy steel, heat treated to perfection to protect against wear & tear and enhances its life
High Quality Brasses are used and machined with accuracy to ensure its longer life, It Provides Unique "sliding cam gear box" system to revolve the roller, Grade A material are used for cast iron part for optimum strength and rigidity. Accurately machined, perfectly aligned parts and quality workmanship ensures Negligible noise produced during operation of machine. Genuine Quality bearings & electrical accessories are used in the machine
